  • Image 1 of 4 of MSI Am5 MPG B650I Edge WiFi Mini-Itx Motherboard

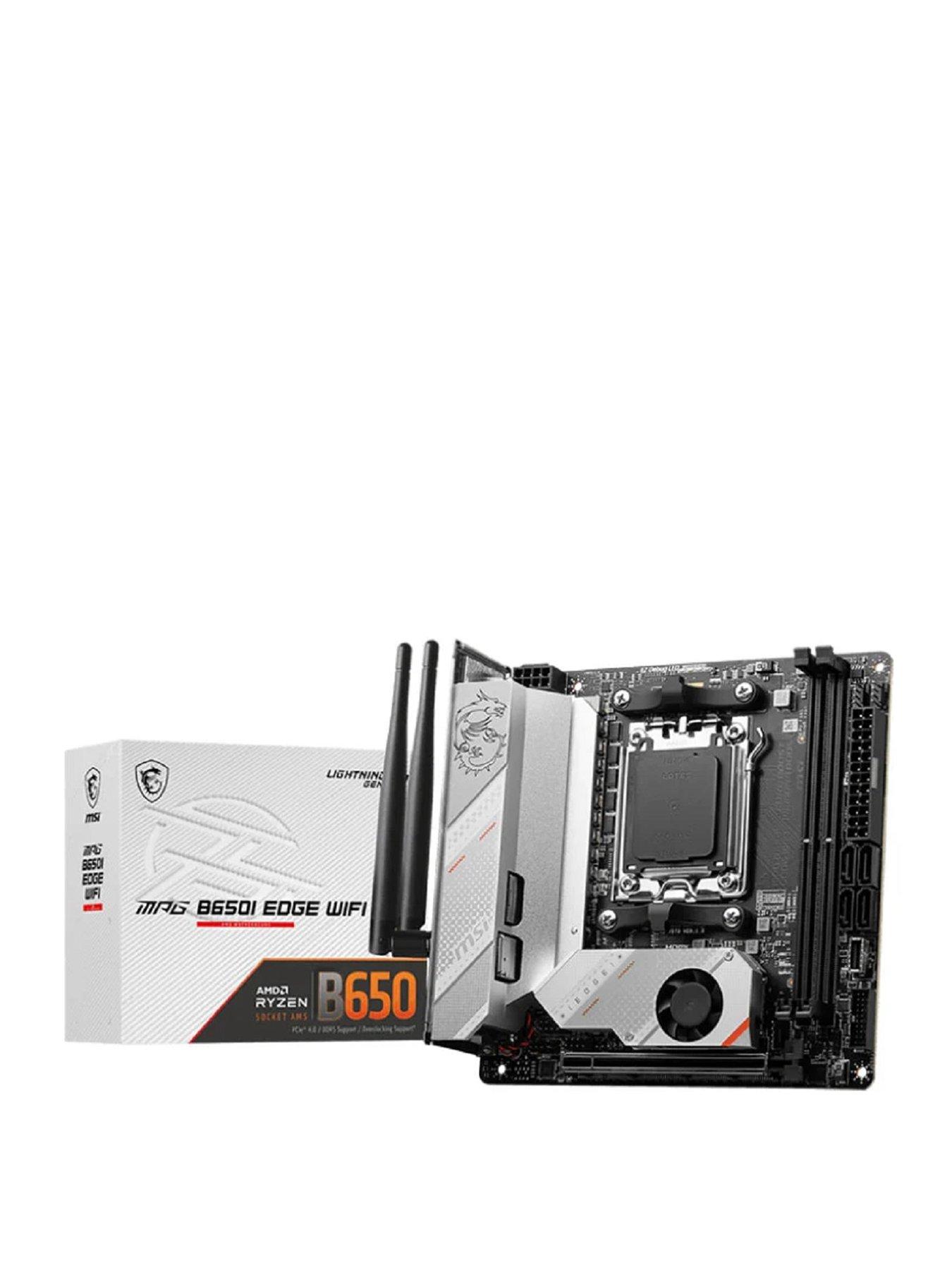

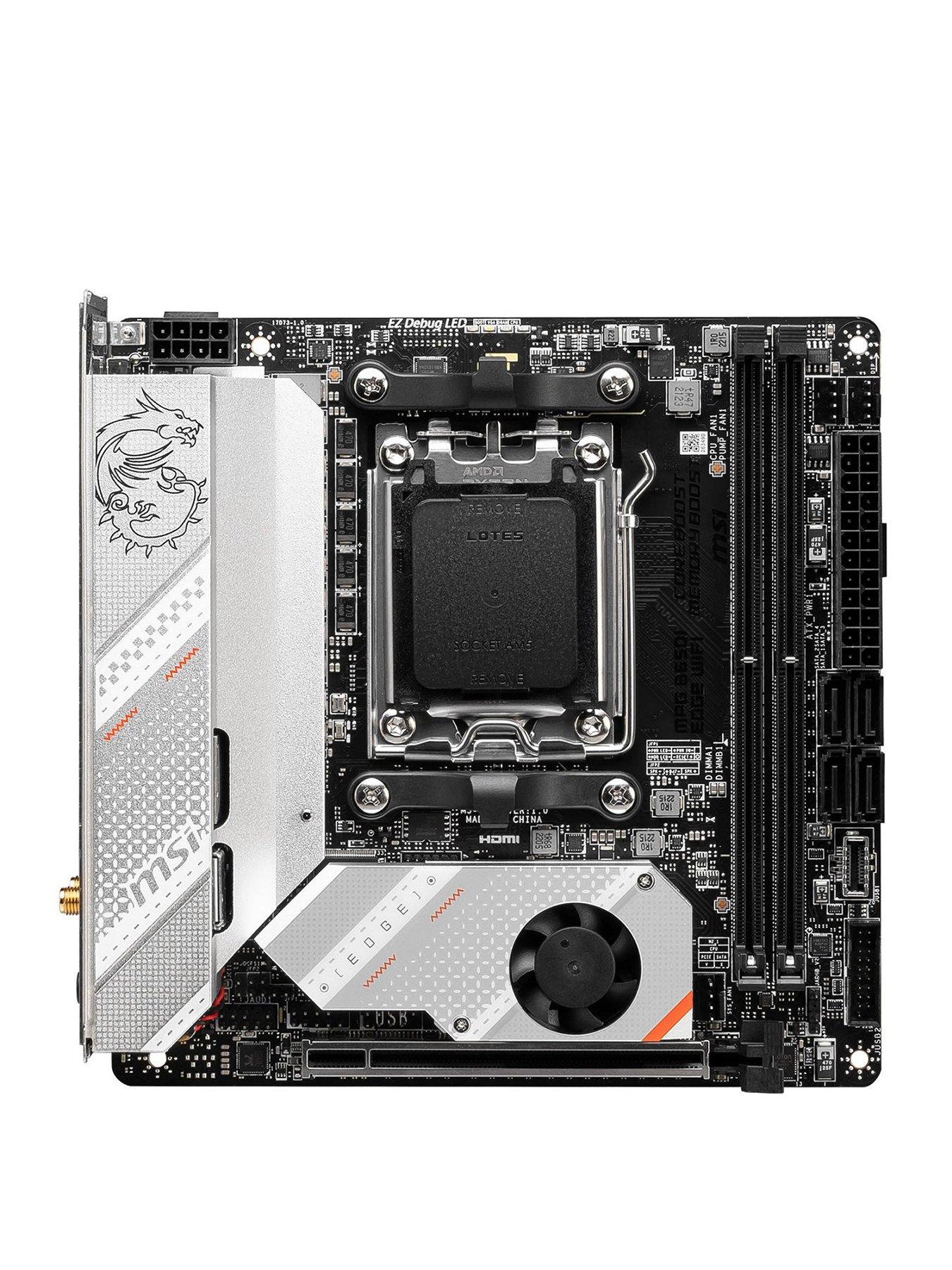

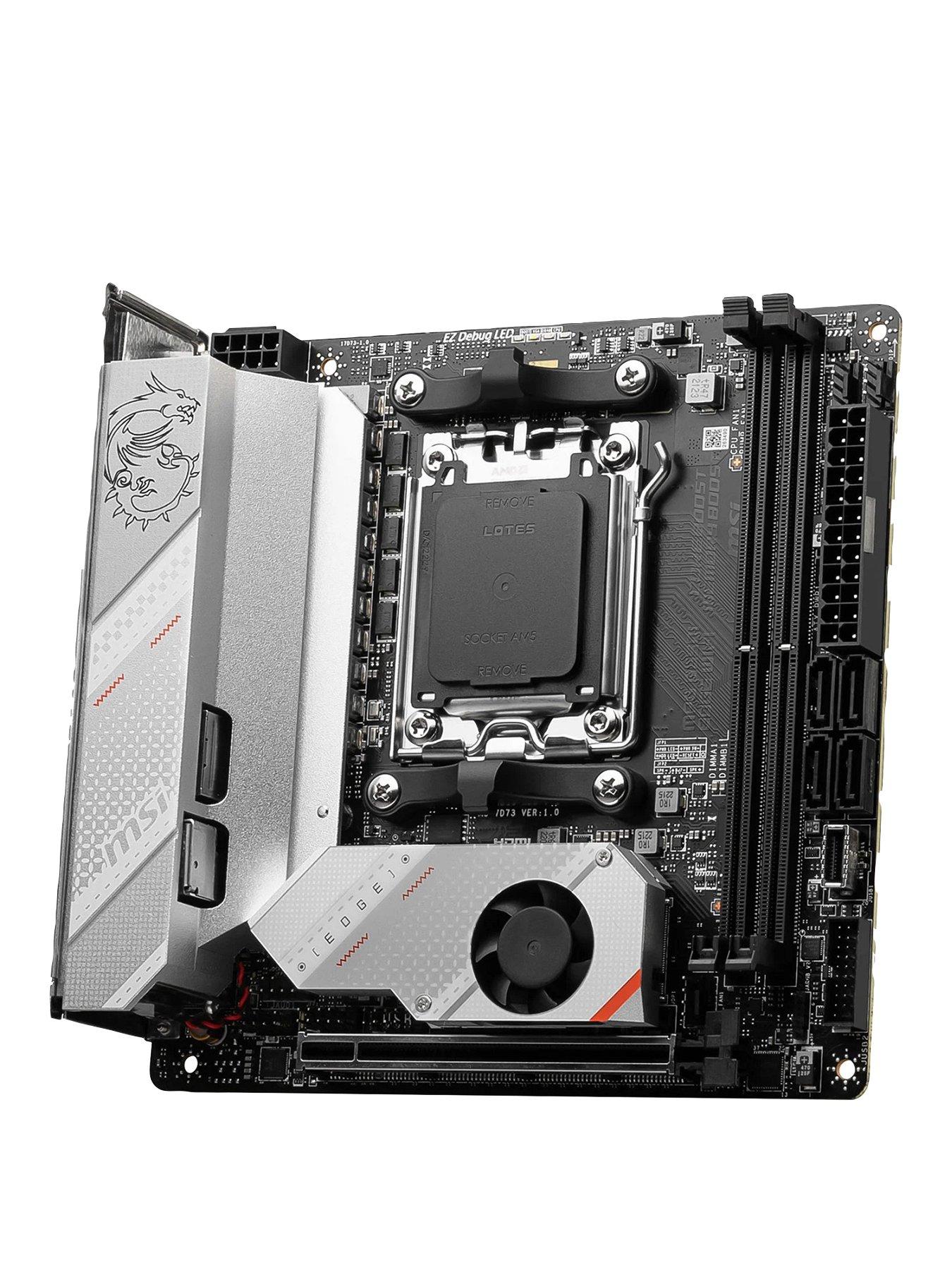

MSIAm5 MPG B650I Edge WiFi Mini-Itx Motherboard

Current price €304.99

FREE standard delivery with Click & Collect through Parcel Connect stores (product exclusions apply) and FREE returns.

Find out more about Click & Collect

In stock

Item number: W5PWW

E.A.N: 4 7 1 1 3 7 7 0 1 0 1 4 6

MSI Am5 MPG B650I Edge Wifi Mini-Itx Motherboard

The MPG B650I EDGE WIFI is a gaming oriented Mini-ITX motherboard constructed around the latest AMD B650 chipset that delivers both performance and style.
  • Computing Accessory Type: PC Accessories
  • Depth: 23 CM
  • Supports AMD Ryzen 7000 Processors (Zen 4, AM5)
  • 8 phases direct CPU power with 80A SPS
  • 1 x PCI-e 4.0 x16 slot
  • Width: 19 CM
1

MPG B650I EDGE WIFI

Perform in Style

The MPG B650I EDGE WIFI is a gaming oriented Mini-ITX motherboard constructed around the latest AMD B650 chipset that delivers both performance and style.



  • Supports AMD Ryzen 7000 Processors (Zen 4, AM5)
  • 8 phases direct CPU power with 80A SPS
  • 1 x PCI-e 4.0 x16 slot
  • 2 x DDR5 DIMMs with Memory Boost: Dual Channel (64GB Max. / 6600MHz OC)
  • 2 x Lightning Gen4 M.2 slots with Shield Frozr (M2_1)
  • 7.1 HD Audio with Audio Boost 5
  • USB 3.2 Gen 2x2 Type-C (20Gbps)
  • 2.5G LAN, AMD Wi-Fi 6E & Bluetooth 5.2

MSI: For Gamers & Creators

MSI is one of the most trusted names in gaming and esports with countless hours and significant resources invested into premier esports leagues and tier-1 gaming teams. By supporting and working with the best of the best, MSI is able to integrate competitive gaming knowledge and aspirations with technological innovation to create new products that shatter today's performance limits.
1
2
3
4

Supports AMD Ryzen 7000 Processors

The MPG B650I EDGE WIFI motherboard supports AMD Ryzen 7000 processors.

Form Factor: Mini-ITX

Socket Type: AM5

Chipset: AMD B650

Direct 8+2 Phase VRM with 80A Smart Power Stage

With exclusive Core Boost technology, the MPG B650I EDGE WIFI is able to sustain heavy CPU power loads (up to 170W) to support system-demanding game settings:

1. Digital PWM IC

2. 8-Phase Direct CPU Power (80A)

3. 2-Phase SOC Power

4. 1-Phase MISC Power

Integrated Cooling Features

VRM Cooling: Features an extended heatsink and 7W/mK thermal pads.

PCB Cooling: Premium 10-layer printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability.

SSD Cooling: M.2 Shield Frozr prevents thermal throttling.

System Cooling: Connect and synchronize cooling with strategically placed pin-headers - including a dedicated pump-fan header.

1 x Fortified PCI-e 4.0 x16 Slot

MSI PCI Express Steel Armor slot is secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference:

  • 1 x PCI-e 4.0/3.0 x16 slot (with Steel Armor)
5
6
7
8

2 x DDR5 Dual Channel (6600+ MHz OC)

Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.

Memory OC profiles in MSI BIOS are MSI OC LAB checked and can be easily enabled with auto power settings for optimized memory speed and stability.

*1DPC 1R Max. overclocking frequency 6600 MHz, supports AMD EXPO.

Gen4 M.2 Connectors

The MPG B650I EDGE WIFI motherboard features MSI's Gen4 M.2 slots:

  • 2 x Gen4 x4 64Gb/s slots

M.2 Shield Frozr

Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.

M.2 Shield Frozr is MSI's most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.

Wi-Fi 6E & Bluetooth 5.2

2.5G LAN: A Realtek RTL8125BG 2.5Gbps LAN controller delivers a premium network gaming experience.

Wi-Fi 6E: Features an AMD Wi-Fi 6E module (ultra-low latency, high-bandwidth) & Bluetooth 5.2 technology.

USB 3.2 Gen 2x2 Type-C: Connect to devices and transfer files at high bandwidth rates: 20Gb/s.

HD Audio: 7.1-Channel USB High Performance Audio with Audio Boost 5.
