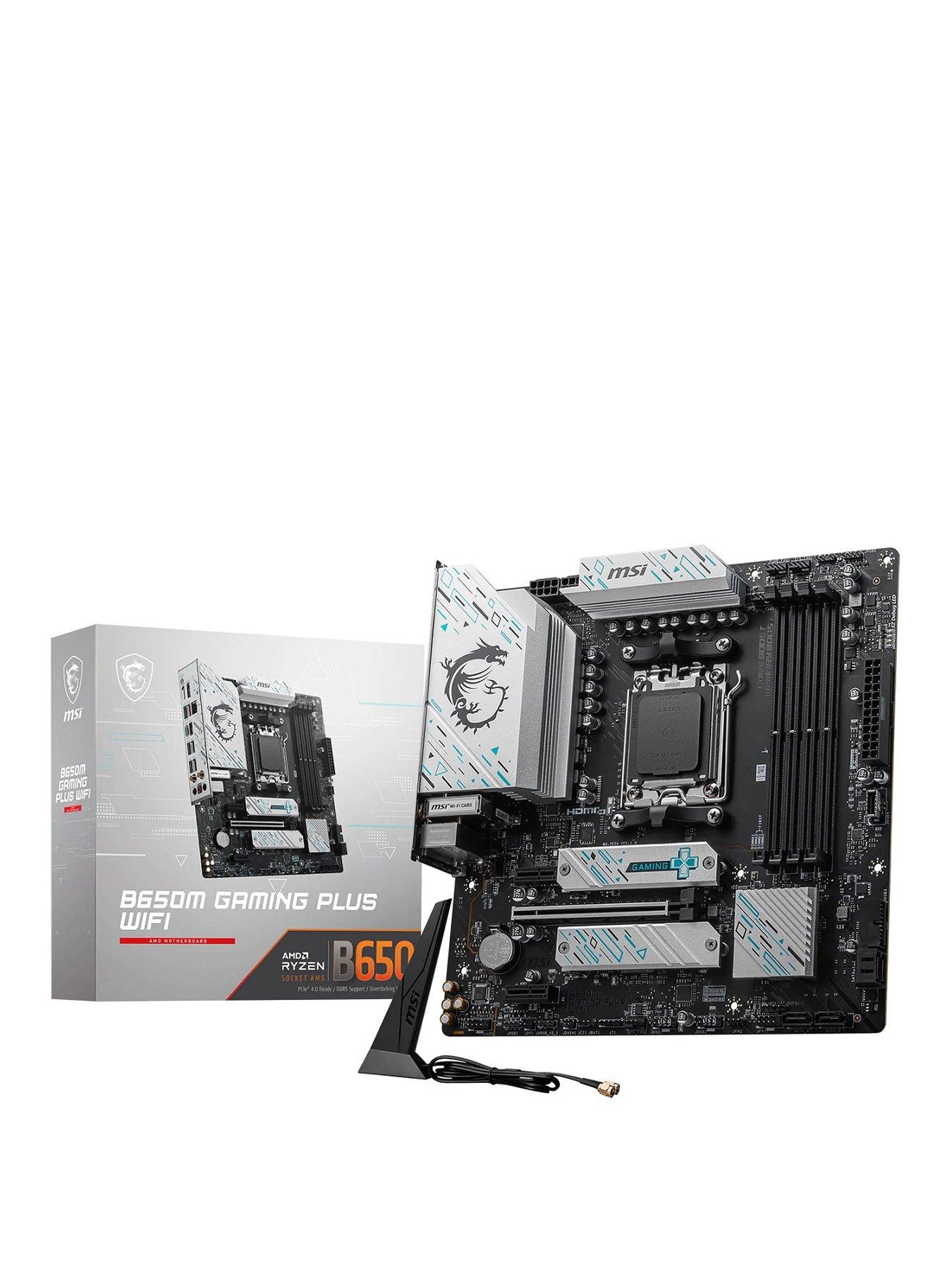

MSIAm5 B650M Gaming Plus WiFi Micro-Atx Motherboard

Current price €204.99

In stock

Item number: W5PX4

E.A.N: 4 7 1 1 3 7 7 1 8 0 9 5 5

MSI Am5 B650M Gaming Plus Wifi Micro-Atx Motherboard

The B650M GAMING PLUS WIFI is a gaming oriented mATX motherboard constructed around the latest AMD B650 chipset that balances value with premium hardware.

Computing Accessory Type: PC Accessories
Depth: 29 CM
Supports AMD Ryzen 7000 Processors (Zen 4, AM5)
1 x PCIe 4.0 x16 slot, 2 x PCIe 3.0 x1 slots
4 x DDR5 DIMMs with Memory Boost: Dual Channel (128GB Max. / 7800MHz OC)
Lightning Gen4 M.2 & M.2 Shield Frozr
Width: 28 CM

B650M GAMING PLUS WIFI

Win the Competition

The B650M GAMING PLUS WIFI is a gaming oriented mATX motherboard constructed around the latest AMD B650 chipset that balances value with premium hardware.

Supports AMD Ryzen 7000 Processors (Zen 4, AM5)
1 x PCIe 4.0 x16 slot, 2 x PCIe 3.0 x1 slots
4 x DDR5 DIMMs with Memory Boost: Dual Channel (128GB Max. / 7800MHz OC)
Lightning Gen4 M.2 & M.2 Shield Frozr
8-Channel (7.1) HD Audio with Audio Boost
USB 3.2 Gen 2 Type-C (10Gbps)
2.5G LAN, AMD Wi-Fi 6E & Bluetooth 5.3

MSI: For Gamers & Creators

MSI is one of the most trusted names in gaming and esports with countless hours and significant resources invested into premier esports leagues and tier-1 gaming teams. By supporting and working with the best of the best, MSI is able to integrate competitive gaming knowledge and aspirations with technological innovation to create new products that shatter today's performance limits.

10+2+1 Duet Rail Power System VRM Design

Supports AMD Ryzen 7000 Processors

The B650M GAMING PLUS WIFI motherboard supports AMD Ryzen 7000 processors.

Form Factor: mATX

Socket Type: AM5

Chipset: AMD B650

10+2+1 Duet Rail Power System VRM Design

With its dual 8 pin power connectors and exclusive Core Boost technology, the B650M GAMING PLUS WIFI is able to sustain heavy CPU power loads to support system-demanding game settings:

Digital PWM IC
10-Phase Duet-Rail Power
2-Phase SOC Power
1-Phase MISC Power

Integrated Cooling Features

VRM Cooling: Features an extended heatsink and 7W/mK thermal pads.

PCB Cooling: Premium 6-layer printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability.

SSD Cooling: M.2 Shield Frozr prevents thermal throttling.

System Cooling: Connect and synchronize cooling with strategically placed pin-headers - including a dedicated pump-fan header.

4 x DDR5 Dual Channel (7200+ MHz OC)*

Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.

Memory OC profiles in MSI BIOS are MSI OC LAB checked and can be easily enabled with auto power settings for optimized memory speed and stability.

*1DPC 1R Max. overclocking frequency 7200 MHz, supports AMD EXPO.

1 x Fortified PCIe 4.0 x16 Slot

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference:

1 x PCIe 4.0 x16 slot (with Steel Armor)

2 x PCIe 3.0 x1 slots

Gen4 M.2 Connectors

The B650M GAMING WIFI motherboard features MSI's latest M.2 slots:

2 x Gen4 x4 64Gb/s slots

M.2 Shield Frozr

Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.

M.2 Shield Frozr is MSI's most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.

Wi-Fi 6E & Bluetooth 5.3

2.5G LAN: A Realtek 2.5Gbps LAN controller delivers a premium network gaming experience.

Wi-Fi 6E: Features an AMD Wi-Fi 6E module (ultra-low latency, high-bandwidth) & Bluetooth 5.3 technology.

HD Audio: 8-Channel (7.1) HD Audio with Audio Boost

Specifications

Documents

Enhanced connectivity

With a comprehensive suite of ports including HDMI, DisplayPort, USB 3.2 Gen 1 and Gen 2, plus USB-C 3.2 Gen 2, the B650M GAMING PLUS WIFI motherboard ensures a wide range of connectivity options for various peripherals and devices, enabling a versatile and seamless user experience.

Robust audio performance

Featuring high definition audio with an 8-channel Realtek ALC897 codec, this motherboard delivers a rich, detailed sound experience, enhancing gameplay, movies, and music with clear, immersive audio.

Advanced cooling technology

The motherboard is equipped with MSI's Extended Heatsink Design and M.2 Shield FROZR, ensuring optimal cooling for sustained performance, even under heavy loads. This design helps prevent thermal throttling and maintains system stability.

High-speed memory support

Supporting DDR5 SDRAM with speeds up to 7200 MHz (O.C.), the B650M GAMING PLUS WIFI offers exceptional memory performance, enabling faster data processing and improved system responsiveness for gaming and high-performance computing tasks.

Networking

With onboard 2.5 Gigabit Ethernet, Bluetooth 5.3, and Wi-Fi 6E, the motherboard provides versatile networking options, offering faster wired and wireless connections for online gaming, streaming, and more.

Product Description	MSI B650M GAMING PLUS WIFI - motherboard - micro ATX - Socket AM5 - AMD B650
Product Type	Motherboard - micro ATX
Chipset Type	AMD B650
Processor Socket	1 x Socket AM5
Compatible Processors	Ryzen (supports Ryzen 7000/8000 Series)
Max RAM Size	192 GB
RAM Supported	4 DIMM slots - DDR5, non-ECC, unbuffered
Storage Ports	4 x SATA-600 (RAID), 2 x M.2
USB / FireWire Ports	1 x USB-C 3.2 Gen 2 + 3 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + (1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)
Audio	HD Audio (8-channel)
LAN	2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
