MSIMSI MAG Coreliquid E240 Cpu Cooler - Black

Current price €129.99

In stock

Item number: W5PXI

E.A.N: 4 7 1 1 3 7 7 1 1 5 7 2 8

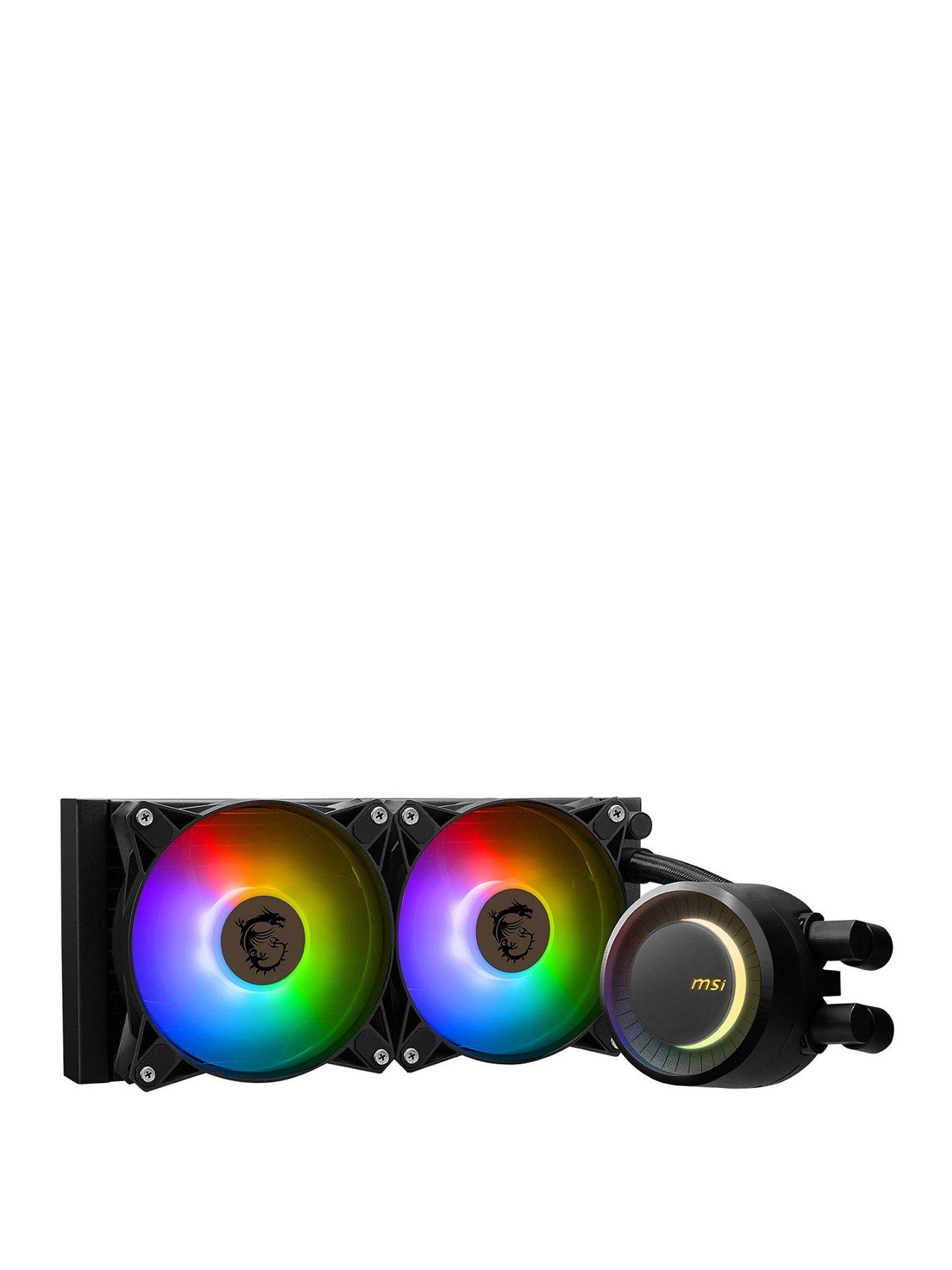

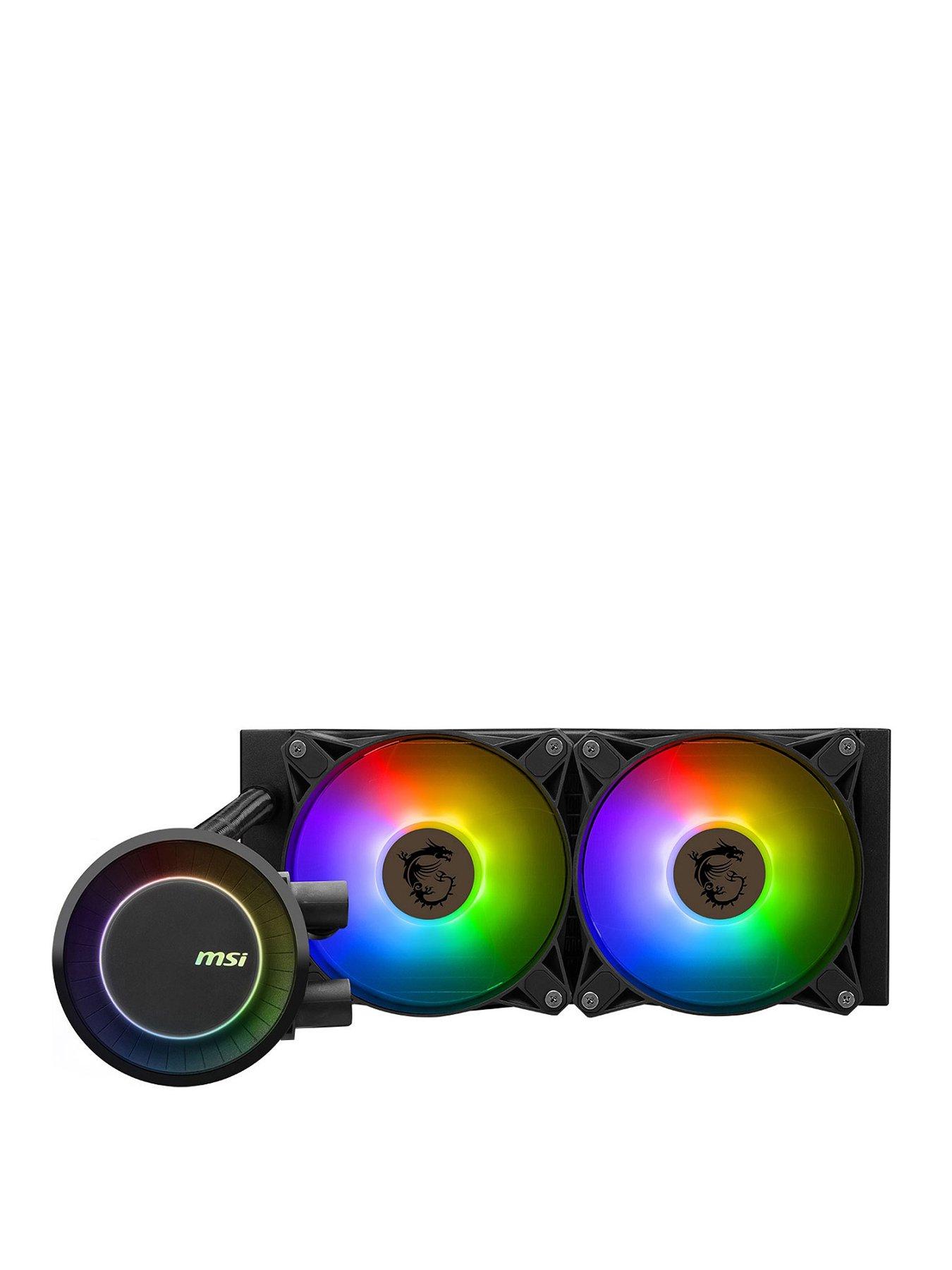

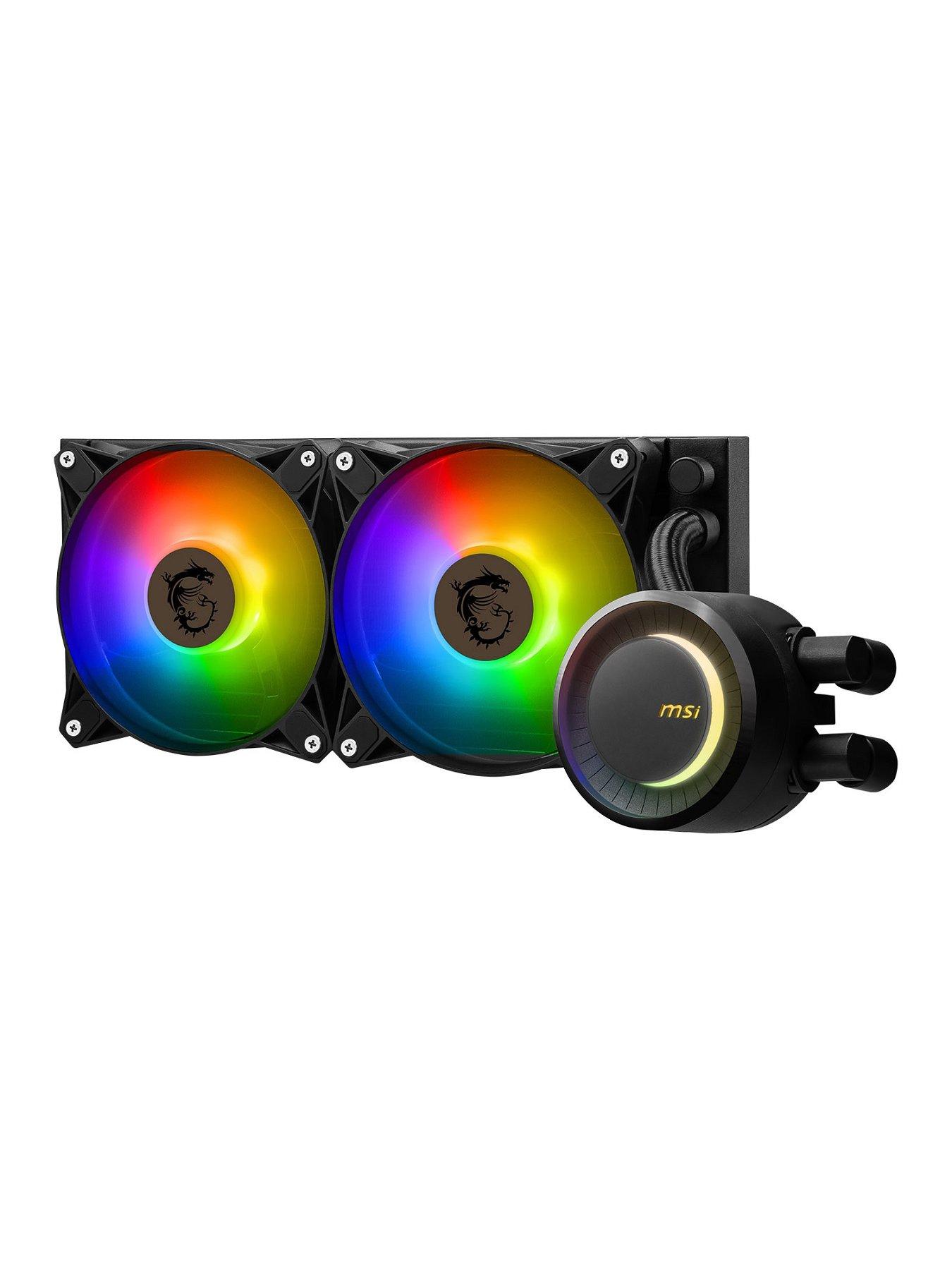

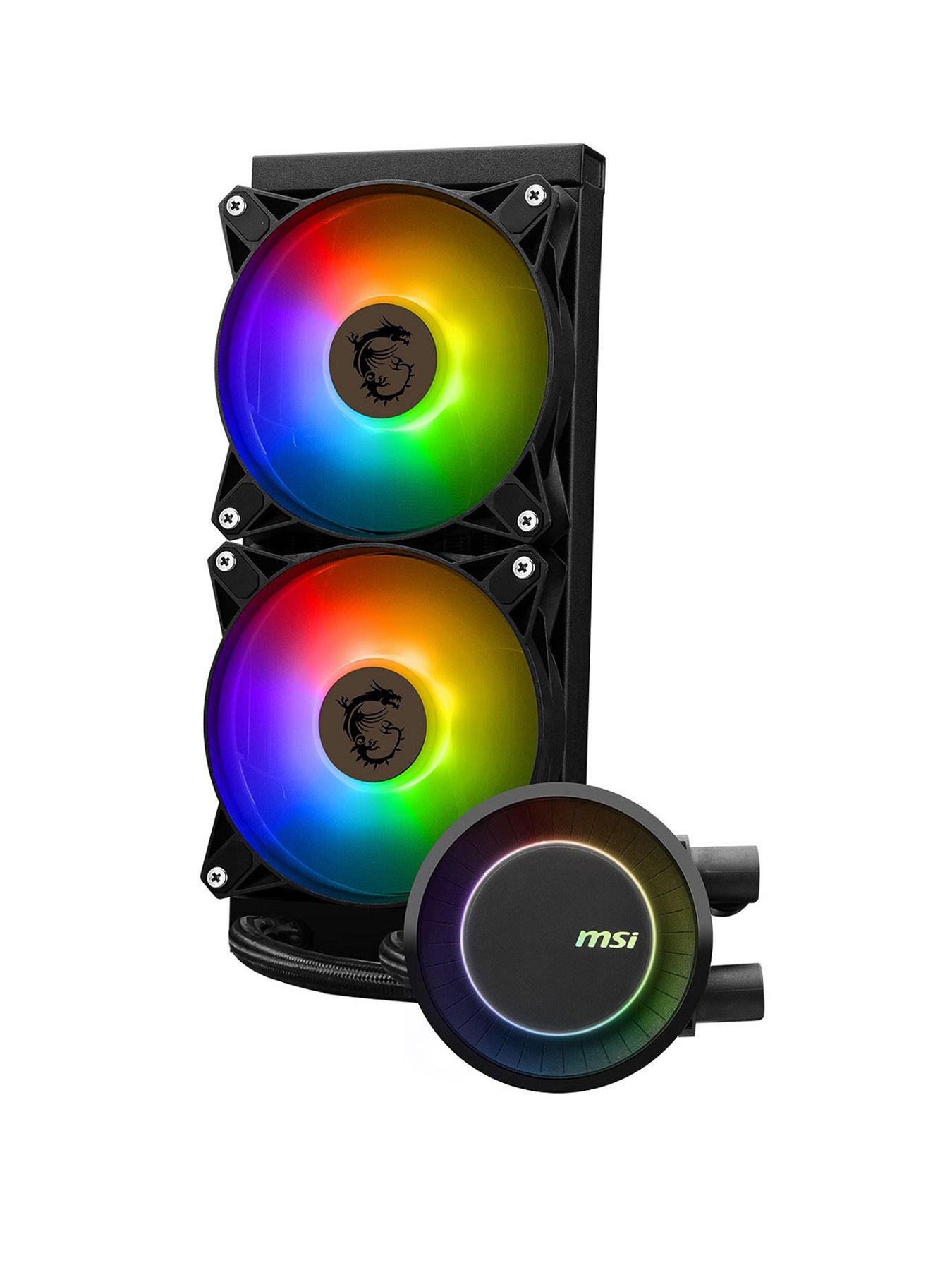

MSI MAG Coreliquid E240 Cpu Cooler Black

Visually inspired by the total solar eclipse, MAG CORELIQUID E-Series AIO CPU liquid coolers combine advanced cooling technology and spectacular Mystic Light ARGB aesthetics.

Computing Accessory Type: PC Accessories
Depth: 450 MM
Full CPU coverage cold plate
Enhanced micro-channel surface area
Dual-chamber coolant block
otatable ARGB eclipse blockhead
Width: 21 CM

MAG CORELIQUID E240

The Colder, the Better

Visually inspired by the total solar eclipse, MAG CORELIQUID E-Series AIO CPU liquid coolers combine advanced cooling technology and spectacular Mystic Light ARGB aesthetics.

Full CPU coverage cold plate
Enhanced micro-channel surface area
Dual-chamber coolant block
Rotatable ARGB eclipse blockhead
12-channel split-flow radiator
FDB fans with ARGB lighting
Easy-to-use MSI Center cooling optimization (requires MSI motherboard)
Compatible with Intel & AMD CPU sockets

MSI: For Gamers & Creators

MSI is one of the most trusted names in gaming and esports with countless hours and significant resources invested into premier esports leagues and tier-1 gaming teams. By supporting and working with the best of the best, MSI is able to integrate competitive gaming knowledge and aspirations with technological innovation to create new products that shatter today's performance limits.

msi-mag_coreliquid-e240-e_tailer_page-feature_5_v2

msi-mag_coreliquid-e240-e_tailer_page-feature_1_v2

msi-mag_coreliquid-e240-e_tailer_page-feature_6_v2

Full CPU Coverage

With multi-die CPU layouts, notably AM5 processors, the hotspot can sometimes be off centre.

In response to this, the MAG CORELIQUID E-Series has an enlarged cold plate area.

Enhanced Micro-Channels

The internal contact between the coolant and the copper cold plate features more micro-channels with deeper profiles.

These upgrades significantly increase the internal surface area, which in turn improves efficiency at the heart of the system.

Dual-Chamber Design

The coolant block is separated into hot & cold chambers, which helps preserve the temperature difference (ΔT) for faster cooling.

A three-phase motor at the pump's core eliminates motor resonance to minimize vibration for improved durability.

Rotatable Eclipse Blockhead

Inspired by the solar eclipse, the manually rotatable ARGB blockhead with MSI logo (up to 270°) can be aligned with any system orientation.

The ARGB blockhead & fan lighting effects can customized through the Mystic Light utility within MSI Center software.*

*Requires 5V ARGB MSI motherboard header (3-pin).

msi-mag_coreliquid-e240-e_tailer_page-feature_7

msi-mag_coreliquid-e240-e_tailer_page-feature_3_v2

msi-mag_coreliquid-e240-e_tailer_page-feature_8_v2

Split-Flow Radiator

The aluminum radiator employs a 12-channel, split-flow design that divides incoming heated water and outgoing cooled water into two 6-channel paths.

This improves thermal dissipation between coolant and fan-cooled air.

Tubing comprises of multi-layered netted plastic concealed beneath reinforced mesh sheathing to ensure that coolant stays inside the closed-loop system at all times.

FDB Fans

Fluid Dynamic Bearing (FDB) fans are widely recognized for their exceptional efficiency & durability, making them the premium choice for liquid cooling solutions.

The fan blades are made of high-purity acrylic for vivid light diffusion.

MSI Center Optimization

MSI Center software unlocks multiple cooling profiles as well as customizable fan curve settings through MSI motherboards:

Silent, Game Mode, and Balanced profiles
Customizable radiator fan speed curves
Customizable pump speed curves

AMD & Intel Compatible

Supported Intel CPU socket types:

LGA 1700, 1200, 1156, 1155, 1151, 1150

Supported AMD CPU socket types:

AM5, AM4

Includes thermal paste, mounting screws and cables.

Rotatable blockhead

Mount the cold plate at any orientation, turn the blockhead up to 270 degrees, and keep it upright.

Achieve full CPU coverage

By enlarging the contact area between the coolant and the copper base of the water block, the MAG CORELIQUID E series maximizes heat dissipation from the CPU. The enhanced density of the micro-channel design improves the efficiency of the water-cooling system by enlarging the contact surface area.

Pump cooling design

Ensures that the cooled water temperature can be delivered to the desired location of the heat source, effectively reducing the temperature of the heat source.

Pump motor resonance elimination

A durable three-phase motor at the core of the pump generates minimal vibrations for long-lasting operation.

High thermal dissipation

The radiator has a 12-pathway designed to help rapidly dissipate heat.

Evaporation-proof tubing

The multi-layer structure effectively prevents the liquid from evaporating, while the reinforced mesh plastic tube enhances the durability of the exterior mesh.

Fan construction

The fan's FDB bearing helps reduce noise level while minimizing vibrations. The fan blades are constructed of low impurity acrylic for better ARGB lighting presentation.

Glow your PC

Splash on some color and vibrant RGB lighting effects using MSI Mystic Light with 16.8 million colors and fancy LED effects.

Product Description	MSI MAG CORELIQUID E240 - processor liquid cooling system
Product Type	Processor liquid cooling system
Package Content	Thermal paste, 4-pin plug to 4-pin Molex adapter, PWM 1 to 2 cable
Compatibility	LGA1156 Socket, LGA1155 Socket, LGA1150 Socket, LGA1151 Socket, Socket AM4, LGA1200 Socket, LGA1700 Socket, Socket AM5
Heatsink Material	Copper base
Liquid Cooler Radiator Size	240 mm
Fans Qty	Dual
Fan Diameter	120 mm
Fan Height	25 mm
Fan Bearing	Fluid dynamic bearing
Rotation Speed	600-1800 rpm
Air Flow	25.5-75.04 cfm
Noise Level	11.2 - 32.5 dBA
Power Connector	4-pin PWM
Features	PWM control, ARGB fans, rotatable block housing
Product Material	Black rubber
Dimensions (WxDxH)	27.7 cm x 11.92 cm x 2.7 cm
Weight	169 g
Manufacturer Warranty	3-year warranty
