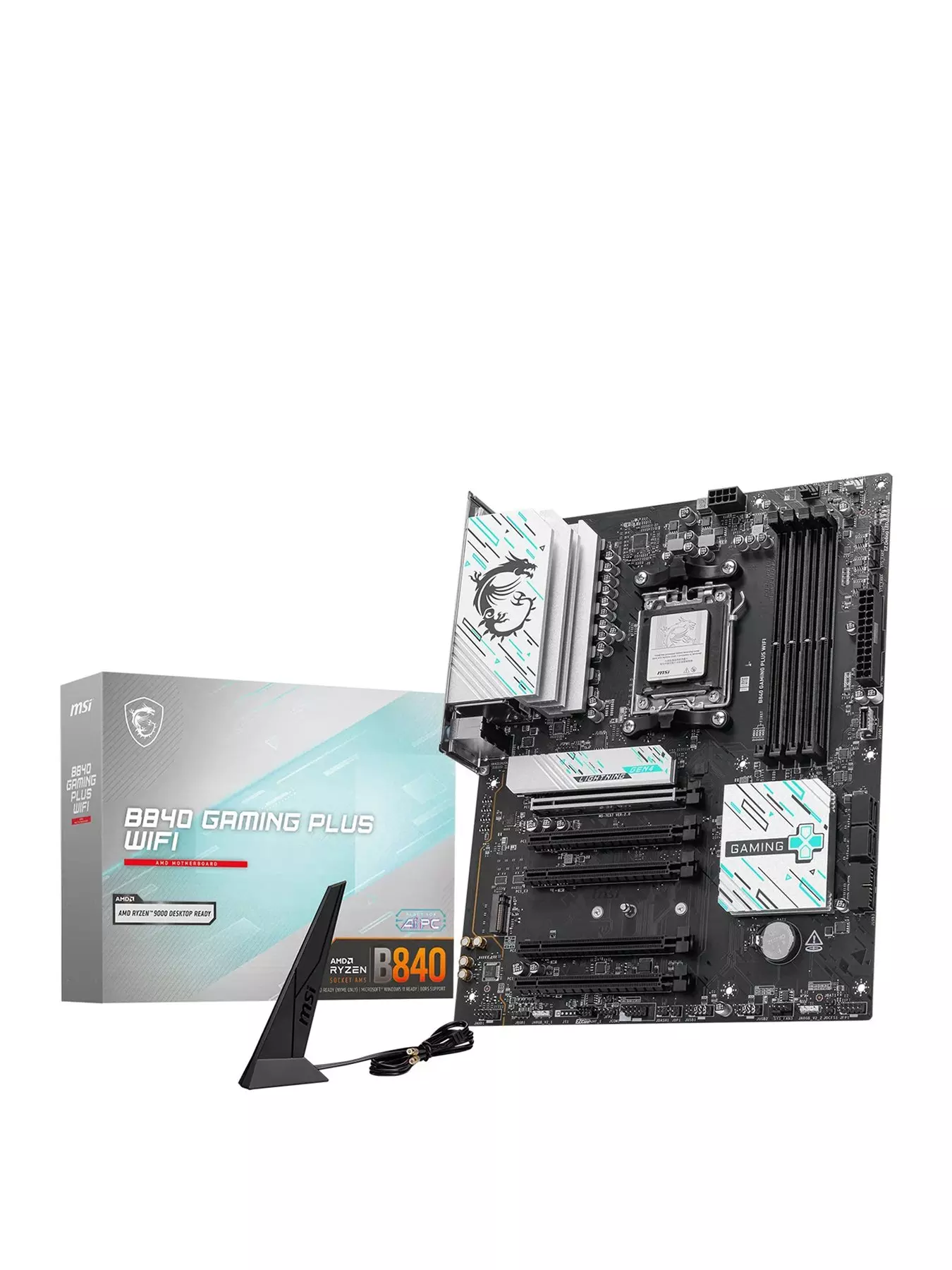

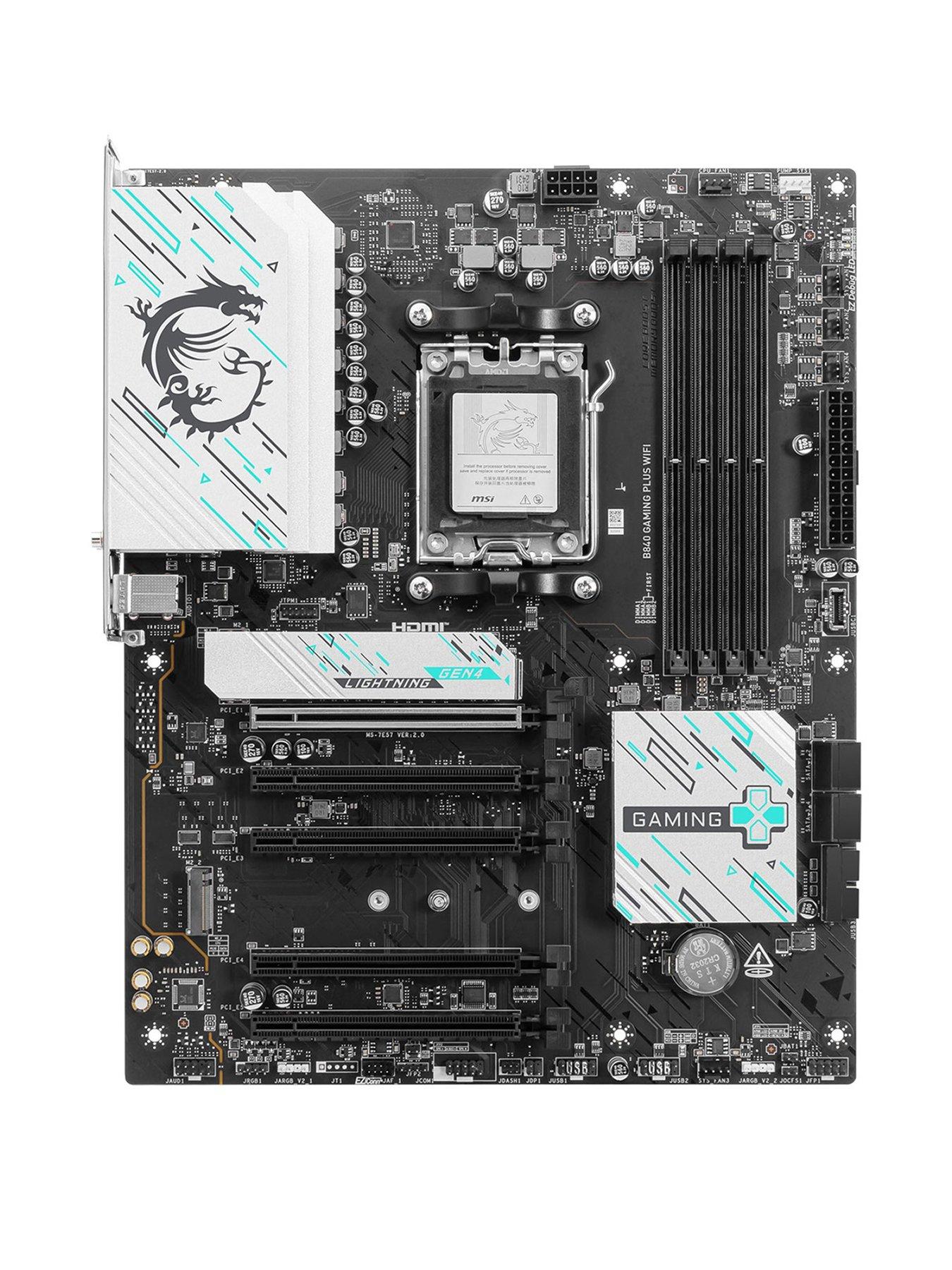

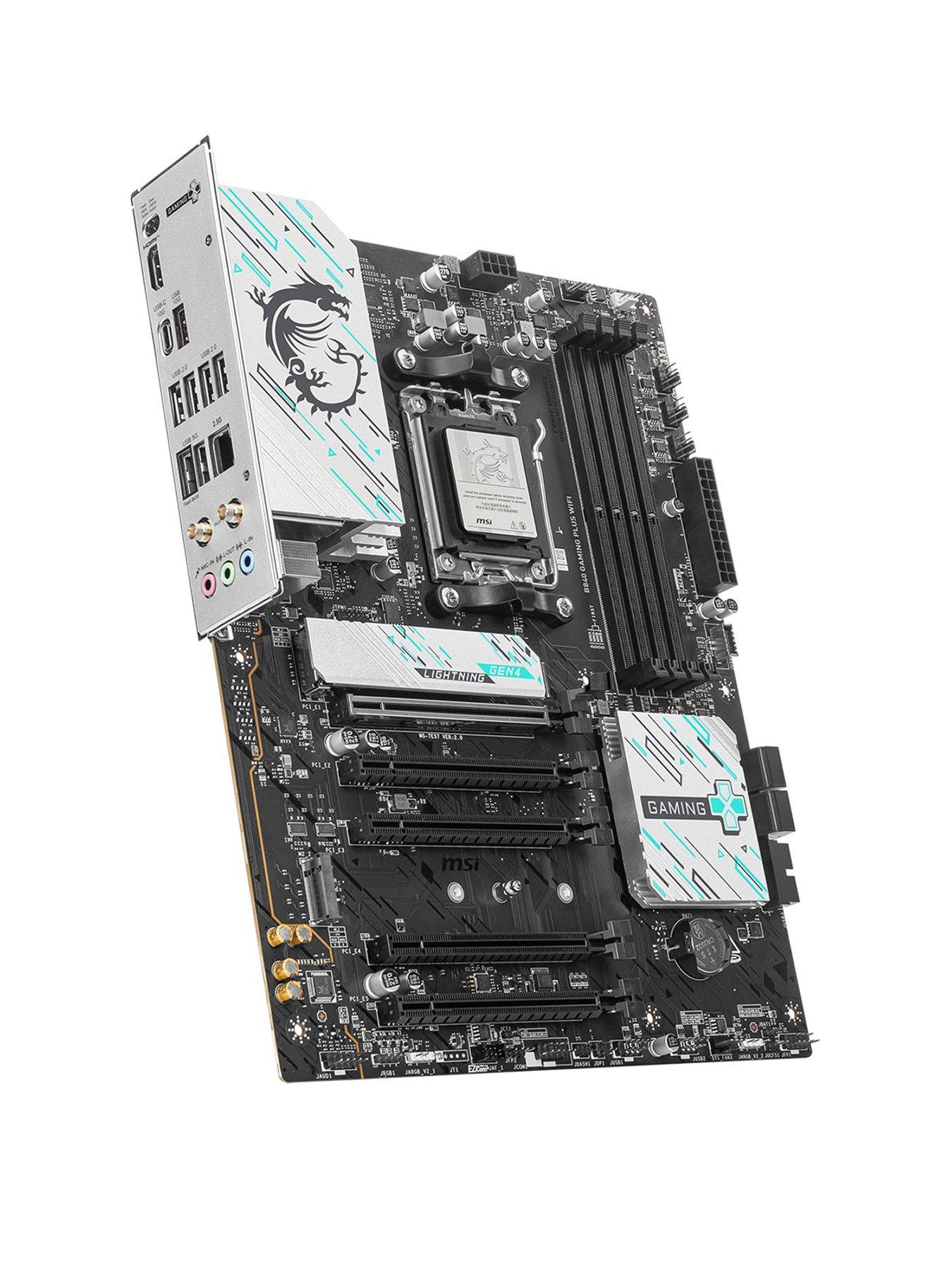

  • Image 1 of 4 of MSI AM5 B840 Gaming Plus Wifi

MSIAM5 B840 Gaming Plus Wifi

Current price €219.99

In stock

Item number: WFYZU

E.A.N: 4 7 1 1 3 7 7 2 8 6 5 8 9

MSI AM5 B840 GAMING PLUS WIFI

MSI B840 GAMING PLUS WIFI (AM5/B840/DDR5/S-ATA 6Gb/s/ATX)
  • Depth: 64 MM
  • Dongle Required: N
  • Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors.?
  • SUpports DDR5 Memory,
  • Dual Channel DDR5 8000+ MT/s (OC).
  • ?Frozr Guard: Extended Heatsink, MOSFE
  • thermal pads rated for 7W/
  • mK, additional choke thermal pad
  • s and EZ M.2 Shield Froz
  • Storage: 256 Gb
  • Height: 340 MM
  • Width: 262 MM
Product image

Win the Competition

The B840 GAMING PLUS WIFI is a gaming oriented ATX motherboard that is constructed with the latest AMD B840 chipset which supports AMD Ryzen 9000 / 8000 / 7000 series desktop processors, featuring full-speed Wi-Fi 7, 2.5G LAN, PCIe 4.0 and DDR5 memory that balances both value and premium hardware.
Product image

Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors

The B840 GAMING PLUS WIFI motherboard supports AMD Ryzen 9000 / 8000 / 7000 Series processors.

Form Factor: ATX
Socket Type: AM5
Chipset: AMD B840
Product image

Ultra Power - Direct CPU Power with P-PAK

With exclusive Core Boost technology and EZ OC Tuning functions, the B840 GAMING PLUS WIFI is able to sustain heavy CPU power loads to support system-demanding game settings:
  • Digital PWM IC
  • 7 Phase Direct CPU Power (P-PAK)
  • 2 Phase SOC Power
  • 1 Phase MISC Power
Product image

Frozr Design

Frozr Guard: Extended Heatsink design, 7W/mK MOSFET thermal pads, extra choke thermal pads and EZ M.2 Shield Frozr II for improved thermal dissipation.

Frozr Sync: Connect and synchronize cooling with strategically placed pin-headers - including CPU fan header (2A), Combo fan (3A, supports both pump fan and system fan) and system fans.

Frozr Control: Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizard and Frozr AI Cooling.
Product image

4 x DDR5 Dual Channel (8000+ MT/s OC)*

Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.

High-Efficiency Mode: Enabling High-Efficiency-Mode in the MSI BIOS increases memory bandwidth and reduces latency. Four different modes allow users to find out the optimal configuration based on the quality of their memory modules.

EXPO Profiles in the MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.

*1DPC 1R Max. overclocking frequency 8000+ MT/s, supports AMD EXPO.
Product image

Fortified PCIe 4.0 x16 Slot

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference.
  • 1 x PCIe 4.0/3.0 x16 slot (with Steel Armor and EZ PCIe Clip II)
  • 1 x PCIe 3.0 x16 slot*
  • 3 x PCIe 3.0 x1 slots
*Supports x4
Product image

Gen4 M.2 Connector

The B840 GAMING PLUS WIFI motherboard features MSI's M.2 slots:

2 x Gen4 x4 64Gbps slots (one with EZ M.2 Shield Frozr II)
Product image

EZ DIY

The DIY Friendly designs optimize the assemble process and experience.

EZ M.2 Shield Frozr II: MSI patented Shield Frozr cover features a tool-free design so users don't have to worry about lost screws or overtightening.

EZ M.2 Clip II: Install or remove the SSD with a simple push of the latch, without using any screws.

EZ PCIe Clip II: Allows for easy removal of the graphics card by pressing the tail-like lock with one finger, even in the cramped case spaces.

EZ Antenna: MSI's latest Wi-Fi antenna not only boasts a beautiful appearance but also features a magnetic design, making it easier to adjust the antenna's placement.
Product image

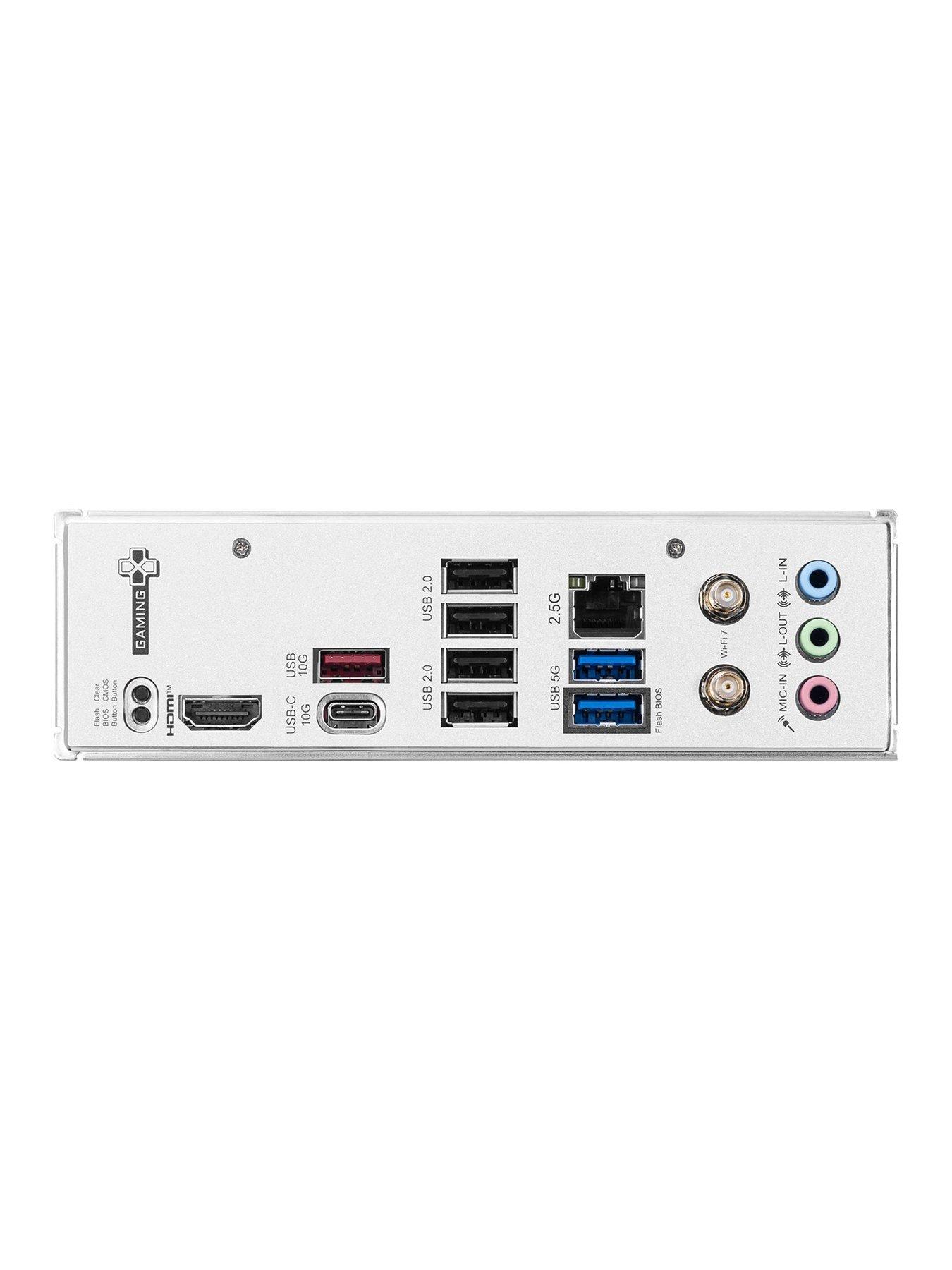

High-speed Connectivity

Wi-Fi 7: Features the full-speed Wi-Fi 7 solution (ultra-low latency, high-bandwidth) & Bluetooth 5.4 technology..

2.5G LAN: A Realtek 2.5Gbps LAN controller delivers a premium network gaming experience.

USB 10Gbps Type-C: Connect to devices and transfer files at high bandwidth rates. HD Audio: 7.1-Channel High Definition Audio with Audio Boost.
